PANELS

FRISBEE

FRBS-182330

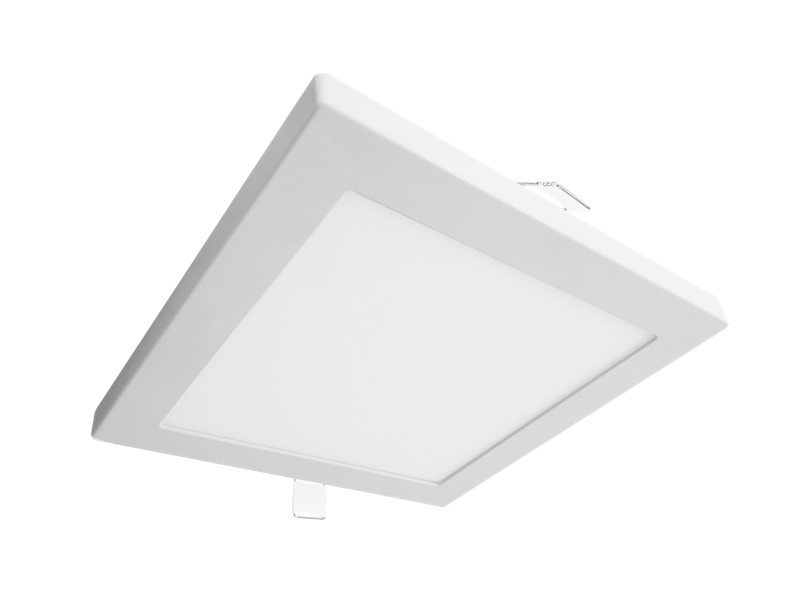

Elegant and slim Led mini ceiling light, ideal for lighting environments in a simple, functional and durable way. The fixing is surface-mounted or recessed, with springs adjustable according to the dimensions of the hole.

Go to the line page FRISBEE QUADRO

Go to DOWNLOADS

  • tecnologia-led.jpg
  • grado-protip-ip20.jpg
  • classe-isol-ii.jpg
  • flammable-s.jpg
  • garanzia-2.jpg
Power
18W (36W CFL )
Luminous flux
1440 Lm
Light color
3000 K (Warm white)

General characteristics

Item number FRBS-182330
EAN code 9090171009279
Technology LED
Type LUMINAIRE
Family PANELS
Line FRISBEE

Dimensions

Height 15 mm
Length 230 mm
Width 230 mm
Thickness 15 mm
Net weight 450 gr

Packing

Package Color Box
Gross weight 629 gr
Master Carton 20 pz
Inner Carton 1 pz

Technical features

Effective power 18 W
Equivalent power 36W CFL
Output luminous flux 1440 Lm
Flux measurement angle 360°
Light color 3000 K
Beam opening 120°
Color rendition (CRI) 80
Dimmable N
Dimmer protocol 0-10 Volt
Light Sensor N
Voltage 220-240 V/AC

Other characteristics

Warranty years 2
Power factor 0,50
Hertz 50/60 Hz
Current consumption 142 mA
Duration 30000 h
Ignition cycles 15000
Operating temperature -20 +45 °C
Isolation Class II
Degree of protection IP20
