PANELS
P-QUADRO Advance driver escluso - CRI90
PQAN90-426040

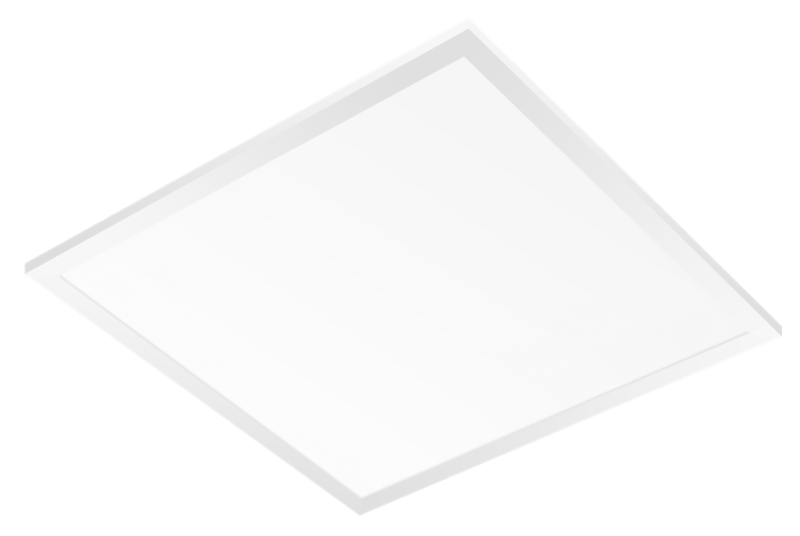

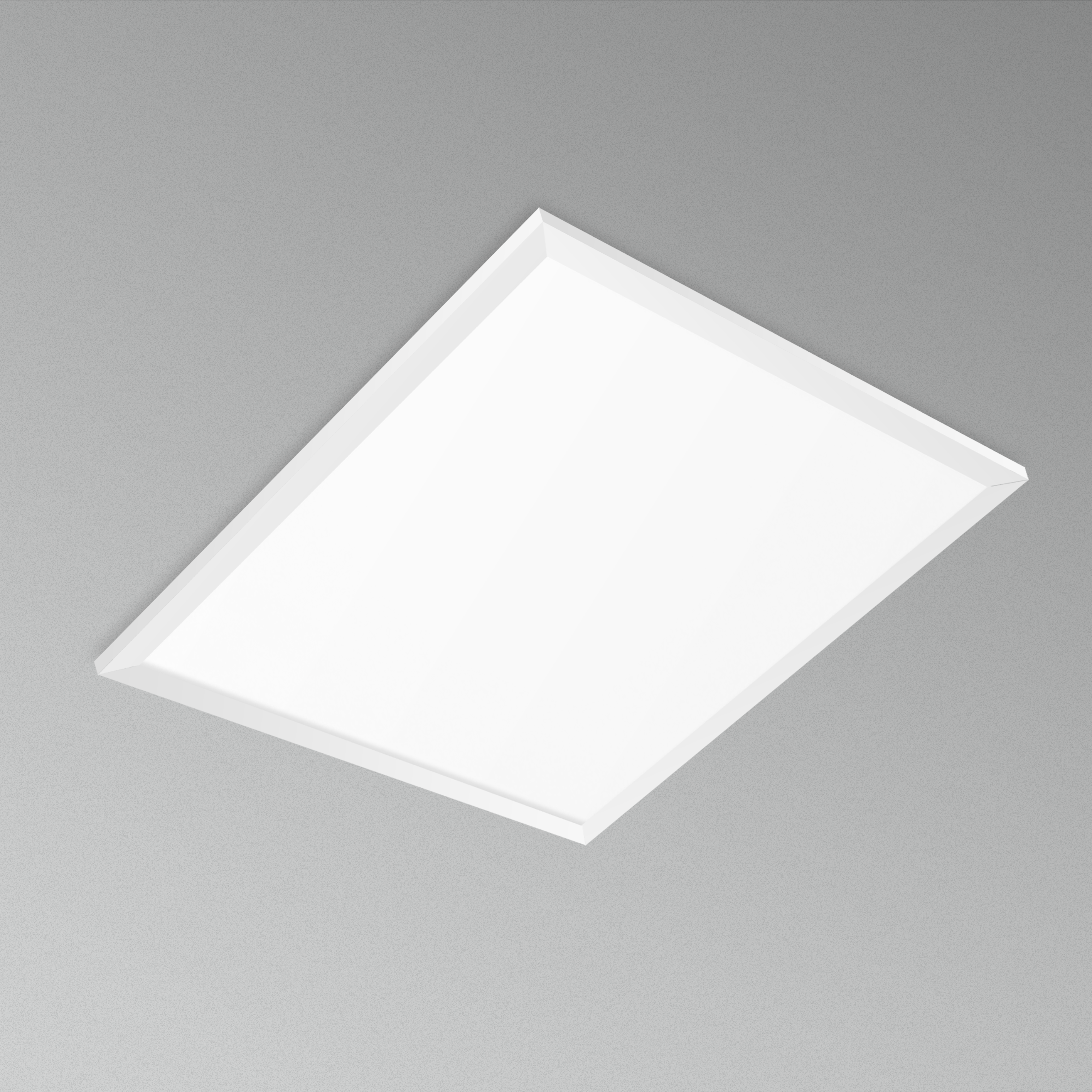

Led panels with an elegant and ultra-thin design that integrates perfectly with the architecture of the interior spaces.
- Power
- 40W
- Luminous flux
- 6450 Lm
- Light color
- 4000 K (Natural white)
General characteristics
| Item number | PQAN90-426040 |
| EAN code | 9090171015881 |
| Technology | LED |
| Type | LUMINAIRE |
| Family | PANELS |
| Line | P-QUADRO Advance |
Dimensions
| Height | 10 mm |
| Length | 595 mm |
| Width | 595 mm |
| Thickness | 10 mm |
| Net weight | 2200 gr |
Packing
| Package | Box |
| Gross weight | 2600 gr |
| Master Carton | 6 pz |
| Inner Carton | 1 pz |
Technical features
| Effective power | 40 W |
| Source luminous flux | 6450 Lm |
| Output luminous flux | 4300 Lm |
| Flux measurement angle | 360° |
| Light color | 4000 K |
| Beam opening | 120° |
| Color rendition (CRI) | 90 |
| Dimmable | Y |
| Dimmer protocol | 0-10 Volt |
| Voltage | 9-40 V/DC |
Other characteristics
| Warranty years | 5 |
| Power factor | 0,90 |
| Hertz | 50/60 Hz |
| Current consumption | 1000 mA |
| Energetic class | C |
| UGR | <19 |
| Duration | 60000 h |
| Ignition cycles | 30000 |
| Operating temperature | -15 +40 °C |
| Isolation Class | II |
| Degree of protection | IP40 |
| Impact resistance | IK07 |
